1968-69 Honda Super Sport 350 (CB350K0)

  • ENGINE
    • Engine: Air cooled, four stroke, twin cylinder SOHC
    • Displacement: 325cc
    • Bore and Stroke: 64 x 50.6 mm
    • Compression Ratio: 9.5:1
    • Fuel Delivery: Constant velocity twin carburetors
    • Ignition: Breaker points
    • Starter: Electric and Kickstart
    • Max Power: 36 hp @ 10500rpm
    • Max Torque: 2.55 kg-m @ 9500 rpm
  • DRIVETRAIN
    • Transmission: 5-speed
    • Final Drive: Chain
    • Clutch: Multi-disc wet plate
  • CHASSIS / SUSPENSION / BRAKES
    • Frame: Cradle
    • Front Suspension: Telescoping forks
    • Rear Suspension: Twin adjustable shocks
    • Front Brakes: Drum
    • Rear Brakes: Drum
    • Front Tire: 3.00-18
    • Rear Tire: 3.50-18
  • DIMENSION
    • Dry-Weight: 149 kg (328 lb)
    • Curb Weight: 160 kg (353 lb)
    • Fuel Capacity: 10 Litres (2.6 Gal)
  • OTHER
    • Colors:
      • Candy Blue with White
      • Candy Red with White
      • Green with White
    • The fuel tank is two-toned with white on the bottom half
    • The tank also had rubber knee pads
    • The upper forks were painted one of the basic colors
    • The side covers and headlight shells were white
    • The seat cover was not pleated
    • The taillight lens was oval-shaped
    • Quarter mile: 13.8 seconds
    • Top speed: 170 km/h (106 mph)
    • The serial number began CB250-1000001.

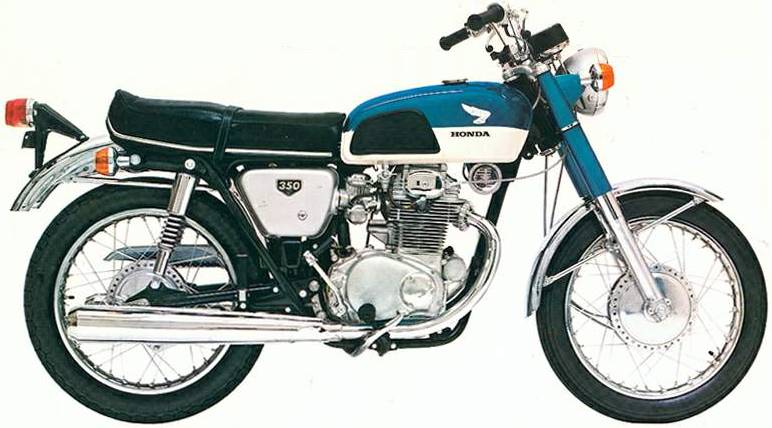

1968 Honda Super Sport 350 CB350K0
1968 Honda Super Sport 350 CB350K0
Click image to enlarge

1969 CB350K1 Super Sport 350

  • ENGINE
    • Engine: Air cooled, four stroke, twin cylinder SOHC
    • Displacement: 325cc
    • Bore and Stroke: 64 x 50.6 mm
    • Compression Ratio: 9.5:1
    • Fuel Delivery: Constant velocity twin carburetors
    • Ignition: Breaker points
    • Starter: Electric and Kickstart
    • Max Power: 36 hp @ 10500rpm
    • Max Torque: 2.55 kg-m @ 9500 rpm
  • DRIVETRAIN
    • Transmission: 5-speed
    • Final Drive: Chain
    • Clutch: Multi-disc wet plate
  • CHASSIS / SUSPENSION / BRAKES
    • Frame: Cradle
    • Front Suspension: Telescoping forks
    • Rear Suspension: Twin adjustable shocks
    • Front Brakes: Drum
    • Rear Brakes: Drum
    • Front Tire: 3.00-18
    • Rear Tire: 3.50-18
  • DIMENSION
    • Dry-Weight: 149 kg (328 lb)
    • Curb Weight: 160 kg (353 lb)
    • Fuel Capacity: 10 Litres (2.6 Gal)
  • OTHER
    • Colors:
      • Candy Blue with White
      • Candy Red with White
      • Green with White
    • A lower stripe was added to the gas tank
    • The seat was pleated
    • The taillight lens was rectangular
    • There was a single reflector on the front fender
    • Quarter mile: 13.8 seconds
    • Top speed: 170 km/h (106 mph)
    • The serial number began CB350-1020596.

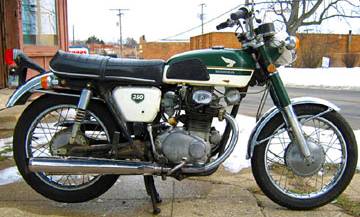

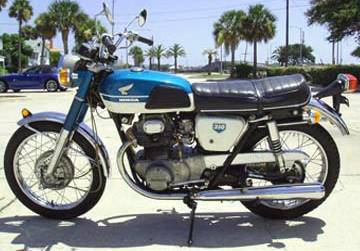

1969 CB350K1
1969 CB350K1
1969 CB350K1
1969 CB350K1

1970 CB350K2 Super Sport 350

  • ENGINE
    • Engine: Air cooled, four stroke, twin cylinder SOHC
    • Displacement: 325cc
    • Bore x Stroke: 64 x 50.6 mm
    • Compression Ratio: 9.5:1
    • Fuel Delivery: Twin CV carburetors
    • Ignition: Breaker points and condenser
    • Starter: Electric and kickstart
    • Max Power: 36 hp @ 10500rpm
    • Max Torque: 2.55 kg-m @ 9500 rpm
  • DRIVETRAIN
    • Transmission: 5-speed
    • Final drive: Chain
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: Telescoping forks
    • Rear Suspension: Adjustable shocks
    • Front Brakes: Drum
    • Rear Brakes: Drum
    • Front Tire: 3.00-18
    • Rear Tire: 3.50-18
  • DIMENSION
    • Dry-Weight: 149 kg (328 lb)
    • Fuel Capacity: 10 Litres (2.6 Gal)
  • OTHER
    • Colors:
      • Candy Blue Green with White
      • Candy Ruby Red with White
      • Candy Gold with White
    • The gas tank is 2-tone The side covers, upper forks, and headlight shell are the basic color (Blue-Green, Gold, or Red)
    • The seat was pleated
    • The taillight lens was rectangular
    • The front reflectors (now two) were moved to the upper fork
    • The front fender braces connect to the bottom of the fork
    • The serial number began CB350-2000001.

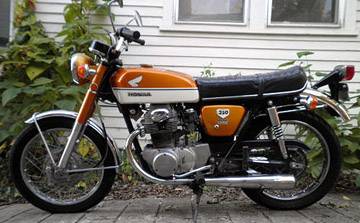

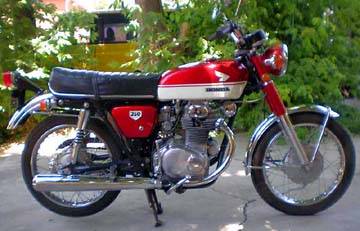

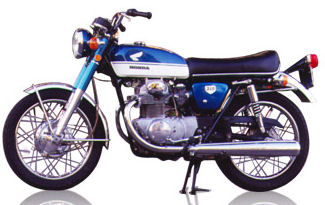

1970 CB350K2
1970 CB350K2
Click image to enlarge
1970 CB350K2
1970 CB350K2
1970 CB350K2
1970 CB350K2
1970 CB350K2
1970 CB350K2

1971 CB350K3 Super Sport 350

  • ENGINE
    • Engine: Air cooled, four stroke, twin cylinder SOHC
    • Displacement: 325cc
    • Bore x Stroke: 64 x 50.6 mm
    • Compression Ratio: 9.5:1
    • Fuel Delivery: Twin CV carburetors
    • Ignition: Breaker points and condenser
    • Starter: Electric and kickstart
    • Max Power: 36 hp @ 10500rpm
    • Max Torque: 2.55 kg-m @ 9500 rpm
  • DRIVETRAIN
    • Transmission: 5-speed
    • Final drive: Chain
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: Telescoping forks
    • Rear Suspension: Adjustable shocks
    • Front Brakes: Drum
    • Rear Brakes: Drum
    • Front Tire: 3.00-18
    • Rear Tire: 3.50-18
  • DIMENSION
    • Dry-Weight: 149 kg (328 lb)
    • Fuel Capacity: 10 Litres (2.6 Gal)
  • OTHER
    • Colors:
      • Candy Gold
      • Derby Green Metallic
      • Light Ruby Red
    • The gas tank, side covers, and upper fork were the basic color (gold, green, or red)
    • The headlight shell was also the basic color
    • The gas tank stripes were black
    • The serial number began CB350-3000001.

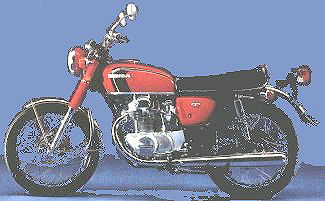

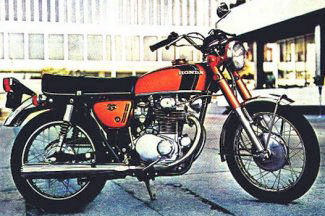

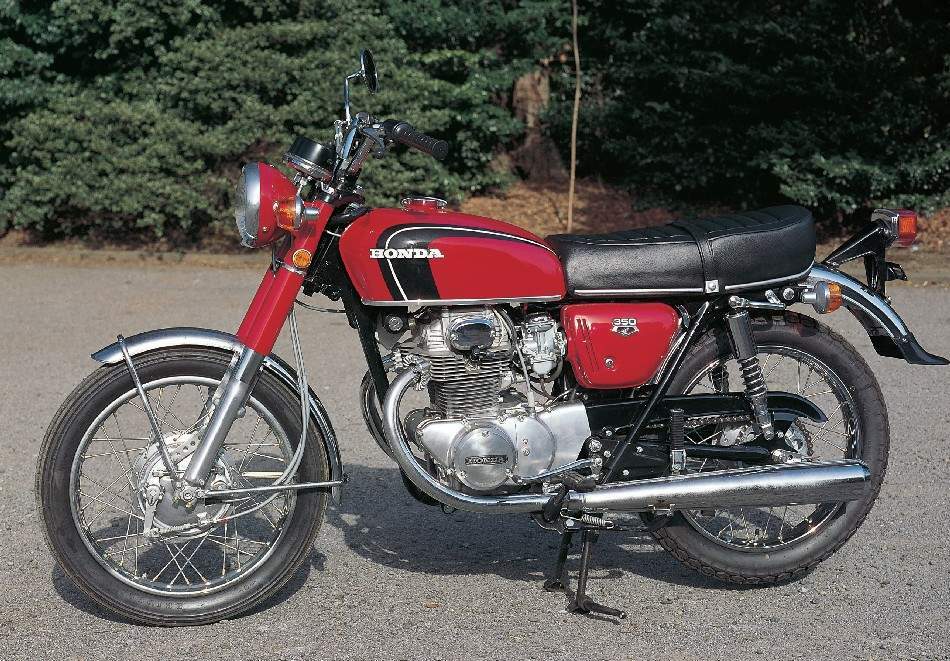

1971 CB350K3
1971 CB350K3
1971 CB350K3
1971 CB350K3
Click image to enlarge

1972 CB350K4 Super Sport 350

  • ENGINE
    • Engine: Air cooled, four stroke, twin cylinder SOHC
    • Displacement: 325cc
    • Bore x Stroke: 64 x 50.6 mm
    • Compression Ratio: 9.5:1
    • Fuel Delivery: Twin CV carburetors
    • Ignition: Breaker points and condenser
    • Starter: Electric and kickstart
    • Max Power: 36 hp @ 10500rpm
    • Max Torque: 2.55 kg-m @ 9500 rpm
  • DRIVETRAIN
    • Transmission: 5-speed
    • Final drive: Chain
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: Telescoping forks
    • Rear Suspension: Adjustable shocks
    • Front Brakes: Drum
    • Rear Brakes: Drum
    • Front Tire: 3.00-18
    • Rear Tire: 3.50-18
  • DIMENSION
    • Dry-Weight: 149 kg (328 lb)
    • Fuel Capacity: 10 Litres (2.6 Gal)
  • OTHER
    • Color:
      • Light Ruby Red
      • Candy Gold
      • Candy Bacchus Olive
      • Gentle Maroon Metallic
    • The headlight shell was black
    • The "350" side cover emblem was enlarged
    • In some markets, a late model CB350G featured front disc brakes
    • The serial number began CB350-4000001.

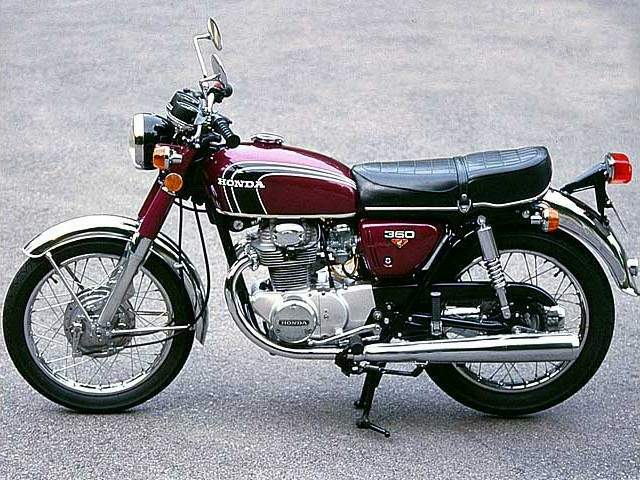

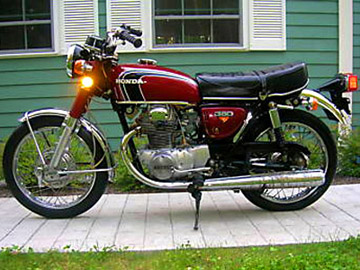

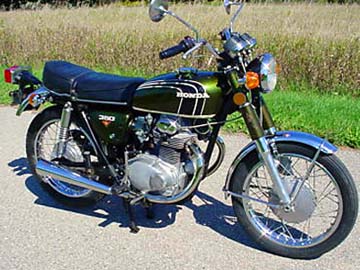

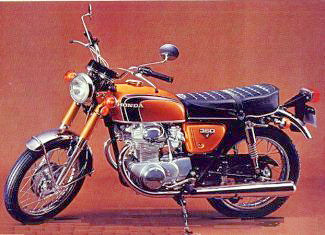

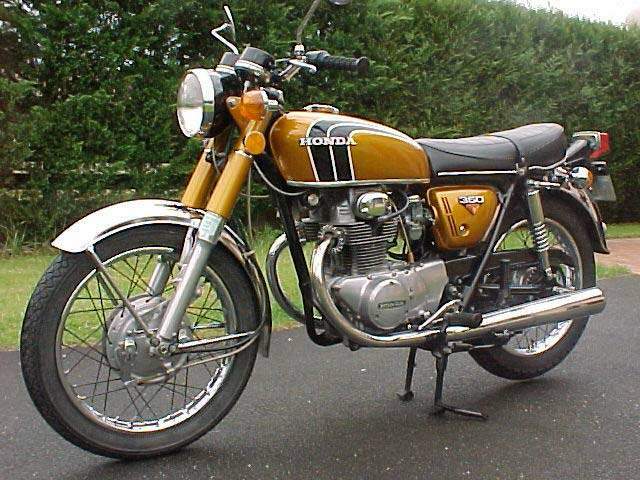

1972 CB350K4
1972 CB350K4
Click image to enlarge
1972 CB350K4
1972 CB350K4
Click image to enlarge
1972 CB350K4
1972 CB350K4
1972 CB350G
1972 CB350G with disc brakes

1973 CB350G Super Sport 350

  • ENGINE
    • Engine: Air cooled, four stroke, twin cylinder SOHC
    • Displacement: 325cc
    • Bore x Stroke: 64 x 50.6 mm
    • Compression Ratio: 9.5:1
    • Fuel Delivery: Twin CV carburetors
    • Ignition: Breaker points and condenser
    • Starter: Electric and kickstart
    • Max Power: 36 hp @ 10500rpm
    • Max Torque: 2.55 kg-m @ 9500 rpm
  • DRIVETRAIN
    • Transmission: 5-speed
    • Final drive: Chain
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: Telescoping forks
    • Rear Suspension: Adjustable shocks
    • Front Brakes: Single Disc (hydraulic)
    • Rear Brakes: Drum
    • Front Tire: 3.00-18
    • Rear Tire: 3.50-18
  • DIMENSION
    • Dry-Weight: 149 kg (328 lb)
    • Fuel Capacity: 10 Litres (2.6 Gal)
  • OTHER
    • Colors:
      • Candy Orange
      • Tyrolean Green Metallic
      • Iris Purple Metallic
    • The gas tank stripes were white and black
    • The front fork covers were chrome and the fork boots were black
    • The lower fork legs were polished aluminum
    • The serial number begins CB350-5000001.

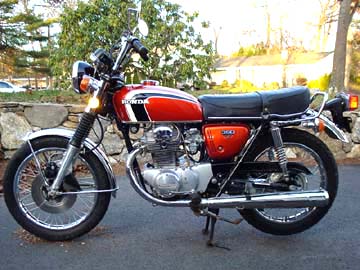

1973 CB350
1973 CB350G
