HONDA Motorcycle
Shadow Aero 750 (VT750 & VT750C)

honda logo

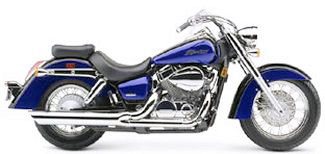

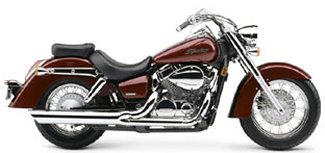

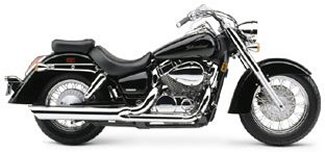

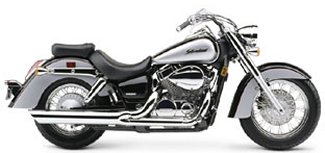

2004 Shadow Aero 750

2004 VT750

2004 VT750

2004 VT750

2004 VT750

  • Engine Type: 745cc liquid-cooled 52-degree V-twin
  • Bore and Stroke: 79.0mm x 76.0mm
  • Compression Ratio: 9.6:1
  • Valve Train: SOHC; three valves per cylinder
  • Carburetion: Single 34.0mm CV type
  • Ignition: CD with electronic advance, two spark plugs per cylinder
  • Transmission: Wide-ratio five-speed
  • Final Drive: Shaft
  • Front Suspension: 41.0mm fork; 4.6-inch travel
  • Rear Suspension: Dual shocks with five-position spring preload adjustability; 3.5-inch travel
  • Front Brake: Single 296.0mm disc with twin-piston caliper
  • Rear Brake: 180.0mm Drum
  • Front Tire: 120/90-17
  • Rear Tire: 160/80-15
  • Wheelbase: 64.5 inches
  • Seat Height: 25.9 inches
  • Dry Weight: 519.4 pounds
  • Fuel Capacity: 3.7 gallons, including 0.9-gallon reserve
  • Emissions: California version differs slightly due to emissions equipment.
  • Colors:
    • Black
    • Candy Dark Red
    • Black/Candy Dark Red
    • Black/Metallic Silver
    • Black/Pearl Blue
  • Model ID: VT750
  • Warranty: 1 year

2004 VT750

2004 VT750

2004 VT750

2004 VT750

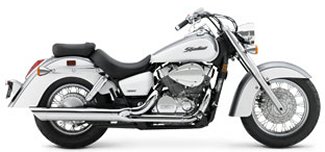

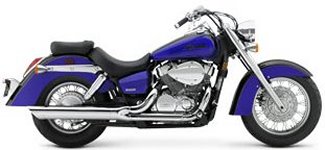

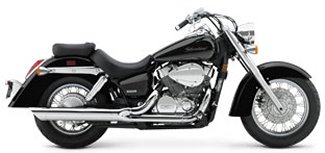

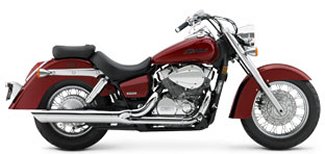

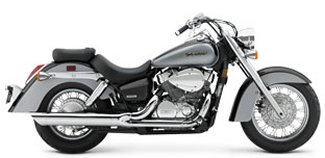

2005 Shadow Aero 750

2005 VT750

2005 VT750

2005 VT750

2005 VT750

2005 VT750

2005 VT750

  • Engine Type: 745cc liquid-cooled 52-degree V-twin
  • Bore and Stroke: 79.0mm x 76.0mm
  • Compression Ratio: 9.6:1
  • Valve Train: SOHC; three valves per cylinder
  • Carburetion: Single 34.0mm CV type
  • Ignition: CD with electronic advance, two spark plugs per cylinder
  • Transmission: Wide-ratio five-speed
  • Final Drive: Shaft
  • Front Suspension: 41.0mm fork; 4.6-inch travel
  • Rear Suspension: Dual shocks with five-position spring preload adjustability; 3.5-inch travel
  • Front Brake: Single 296.0mm disc with twin-piston caliper
  • Rear Brake: 180.0mm Drum
  • Front Tire: 120/90-17
  • Rear Tire: 160/80-15
  • Wheelbase: 64.5 inches
  • Seat Height: 25.9 inches
  • Dry Weight: 519.4 pounds
  • Fuel Capacity: 3.7 gallons, including 0.9-gallon reserve
  • Emissions: California version differs slightly due to emissions equipment.
  • Colors:
    • Black
    • Candy Red
    • Black/Candy Red
    • Black/Metallic Silver
    • Black/Pearl Blue
    • Metallic Silver/Pearl White
  • Model ID: VT750
  • Warranty: 1 year

2005 VT750

2005 VT750

2005 VT750

2005 VT750

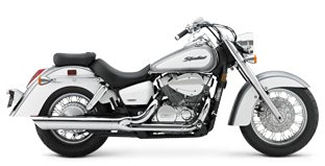

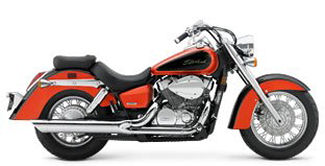

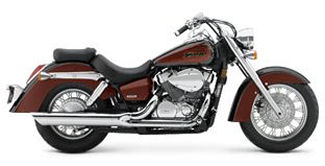

2006 VT750 Shadow Aero

VT750 Shadow Aero

2006 VT750 Shadow Aero

VT750 Shadow Aero

2006 VT750 Shadow Aero

VT750 Shadow Aero

2006 VT750 Shadow Aero

  • Engine Type: 745cc liquid-cooled 52-degree V-twin
  • Bore and Stroke: 79.0mm x 76.0mm
  • Compression Ratio: 9.6:1
  • Valve Train: SOHC; three valves per cylinder
  • Carburetion: Single 34.0mm CV type
  • Ignition: CD with electronic advance, two spark plugs per cylinder
  • Transmission: Wide-ratio five-speed
  • Final Drive: Shaft
  • Front Suspension: 41.0mm fork; 4.6-inch travel
  • Rear Suspension: Dual shocks with five-position spring preload adjustability; 3.5-inch travel
  • Front Brake: Single 296.0mm disc with twin-piston caliper
  • Rear Brake: 180.0mm Drum
  • Front Tire: 120/90-17
  • Rear Tire: 160/80-15
  • Rake: 34-degree
  • Trail: 161mm (6.3 inches)
  • Wheelbase: 64.5 inches
  • Seat Height: 25.9 inches
  • Dry Weight: 519.4 pounds
  • Fuel Capacity: 3.7 gallons, including 0.9-gallon reserve
  • Emissions: California version differs slightly due to emissions equipment.
  • Colors:
    • Black
    • Candy Dark Red
    • Black/Candy Orange
    • Dark Brown/Black
    • Metallic Silver/Pearl White
  • Model ID: VT750

VT750 Shadow Aero

2006 VT750 Shadow Aero

VT750 Shadow Aero

2006 VT750 Shadow Aero

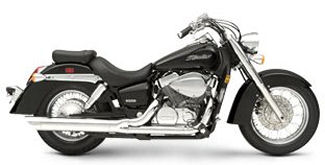

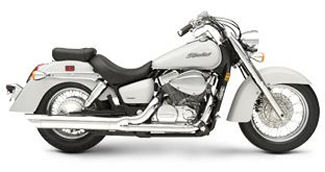

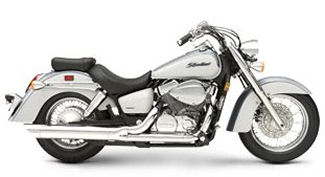

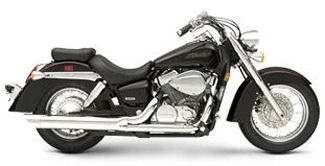

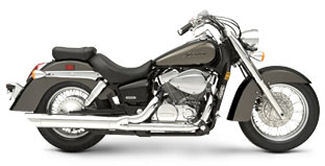

2007 VT 750 Shadow Aero

VT 750 Shadow Aero

2007 VT 750 Shadow Aero

VT 750 Shadow Aero

2007 VT 750 Shadow Aero

VT 750 Shadow Aero

2007 VT 750 Shadow Aero

  • Overview: The only thing more stunning than this machine's sweet retro styling accents is its unbelievable price tag. Long, low, powerful and covered in chrome from the fork covers to the rear brake pedal, with spoked wheels and classic valanced fenders, the 750cc V-twin Shadow Aero delivers full-size looks and muscle at a mid-size price.
  • Engine Type: 745cc liquid-cooled 52-degree V-twin
  • Bore and Stroke: 79.0mm x 76.0mm
  • Compression Ratio: 9.6:1
  • Valve Train: SOHC; three valves per cylinder
  • Carburetion: Single 34.0mm CV type
  • Ignition: CD with electronic advance, two spark plugs per cylinder
  • Transmission: Wide-ratio five-speed
  • Final Drive: Shaft
  • Front Suspension: 41.0mm fork; 4.6-inch travel
  • Rear Suspension: Dual shocks with five-position spring preload adjustability; 3.5-inch travel
  • Front Brake: Single 296.0mm disc with twin-piston caliper
  • Rear Brake: 180.0mm Drum
  • Front Tire: 120/90-17
  • Rear Tire: 160/80-15
  • Rake: 34-degree
  • Trail: 161mm (6.3 inches)
  • Wheelbase: 64.5 inches
  • Seat Height: 25.9 inches
  • Dry Weight: 519.4 pounds
  • Fuel Capacity: 3.7 gallons, including 0.9-gallon reserve
  • Emissions: California version differs slightly due to emissions equipment.
  • Colors:
    • Black
    • Pearl White
    • Pearl Black/Metallic Titanium
    • Metallic Silver/Pearl White
    • Black/Red Pinstripe
  • Model ID: VT750

VT 750 Shadow Aero

2007 VT 750 Shadow Aero

VT 750 Shadow Aero

2007 VT 750 Shadow Aero

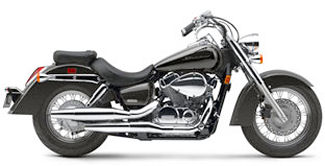

2008 VT 750 Shadow Aero

  • Overview:
    • Full-sized looks and 750cc performance without the full-sized price tag. Sound like a stretch? Not when you're talking about the Honda Shadow Aero. Stunning is one way to describe its long, low, retro styling simply drenched in chrome from tip to tail and boasting classic valanced fenders, spoked wheels and five all-new colors. Staggering is another -- especially once you see that all this muscular V-twin style and performance could be yours for a mid-sized price.
  • ENGINE
    • Engine Type: 745cc liquid-cooled 52-degree V-twin
    • Bore and Stroke: 79.0mm x 76.0mm
    • Compression Ratio: 9.6:1
    • Valve Train: SOHC; three valves per cylinder
    • Induction: Single 34.0mm CV type
    • Ignition: CD with electronic advance, two spark plugs per cylinder
  • DRIVETRAIN
    • Transmission: Wide-ratio five-speed
    • Final Drive: Shaft
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: 41.0mm fork; 4.6-inch travel
    • Rear Suspension: Dual shocks with five-position spring preload adjustability; 3.5-inch travel
    • Front Brake: Single 296.0mm disc with twin-piston caliper
    • Rear Brake: 180.0mm Drum
    • Front Tire: 120/90-17
    • Rear Tire: 160/80-15
  • DIMENSION
    • Rake: 34-degree
    • Trail: 161mm (6.3 inches)
    • Wheelbase: 64.5 inches
    • Seat Height: 25.9 inches
    • Curb Weight: N/A
    • Fuel Capacity: 3.7 gallons, including 0.9-gallon reserve
  • OTHER
    • Emissions: California version differs slightly due to emissions equipment.
    • Colors:
      • Black
      • Candy Dark Red
      • Black/White
      • Candy Dark Red/White
      • Metallic Silver/Black
    • Model ID: VT750C
    • 1 year Warranty: Coverage of defects in materials and workmanship

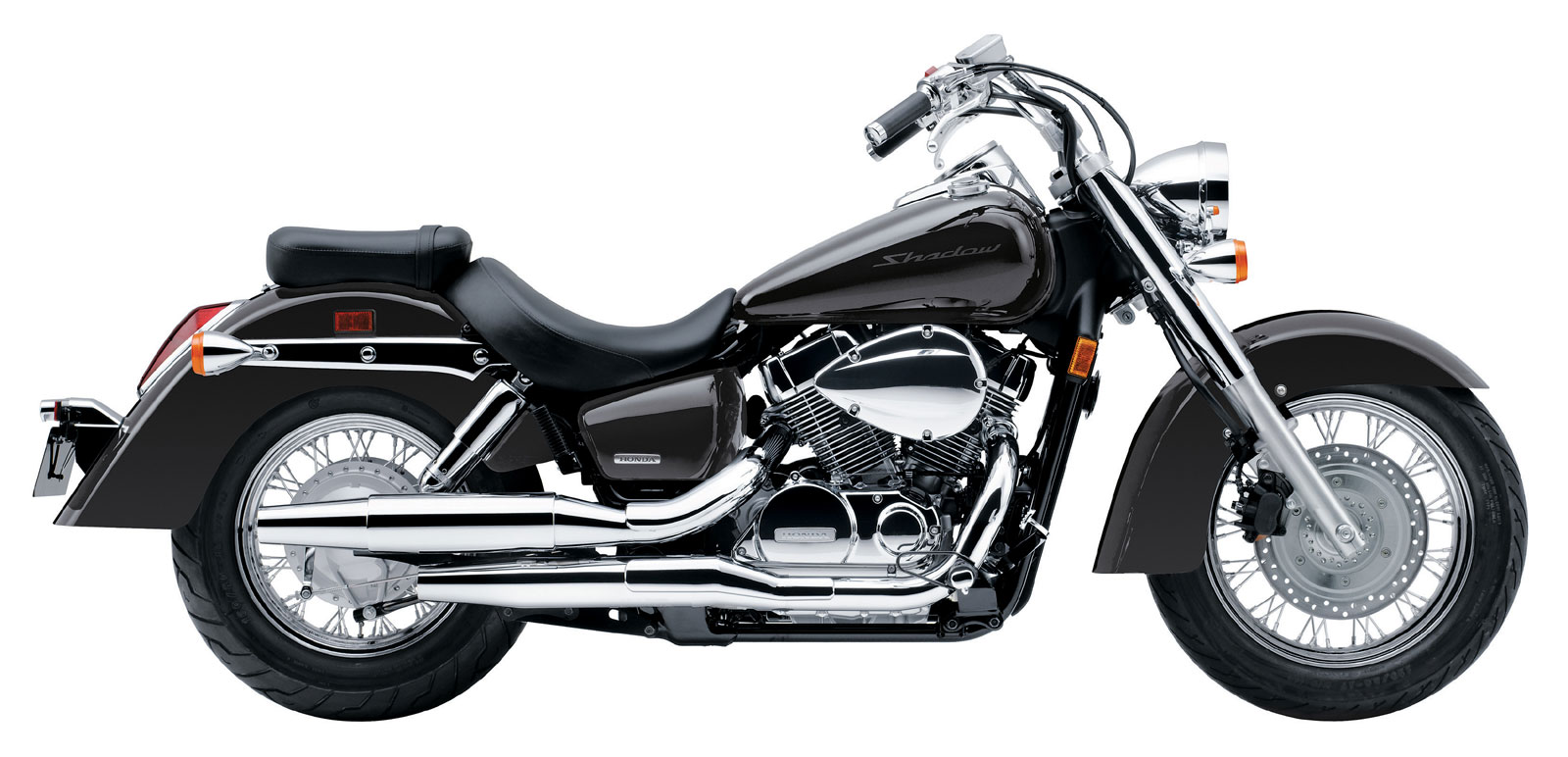

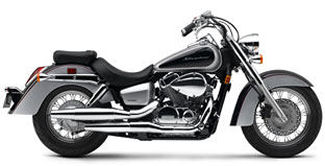

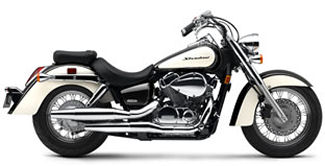

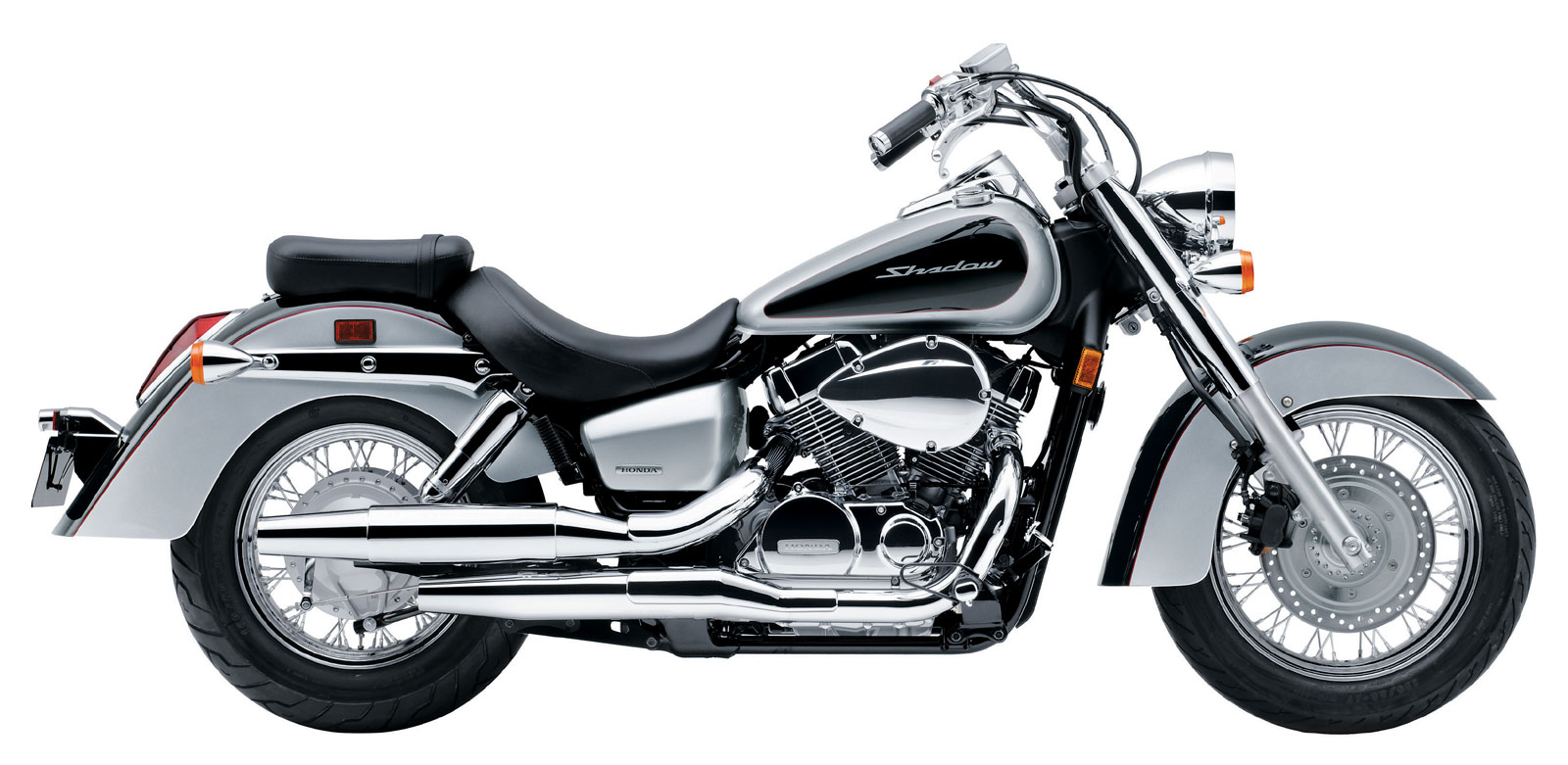

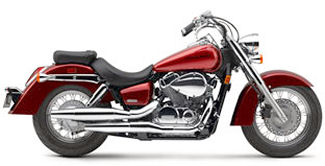

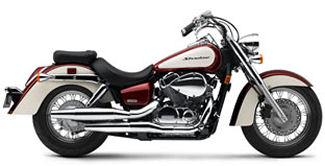

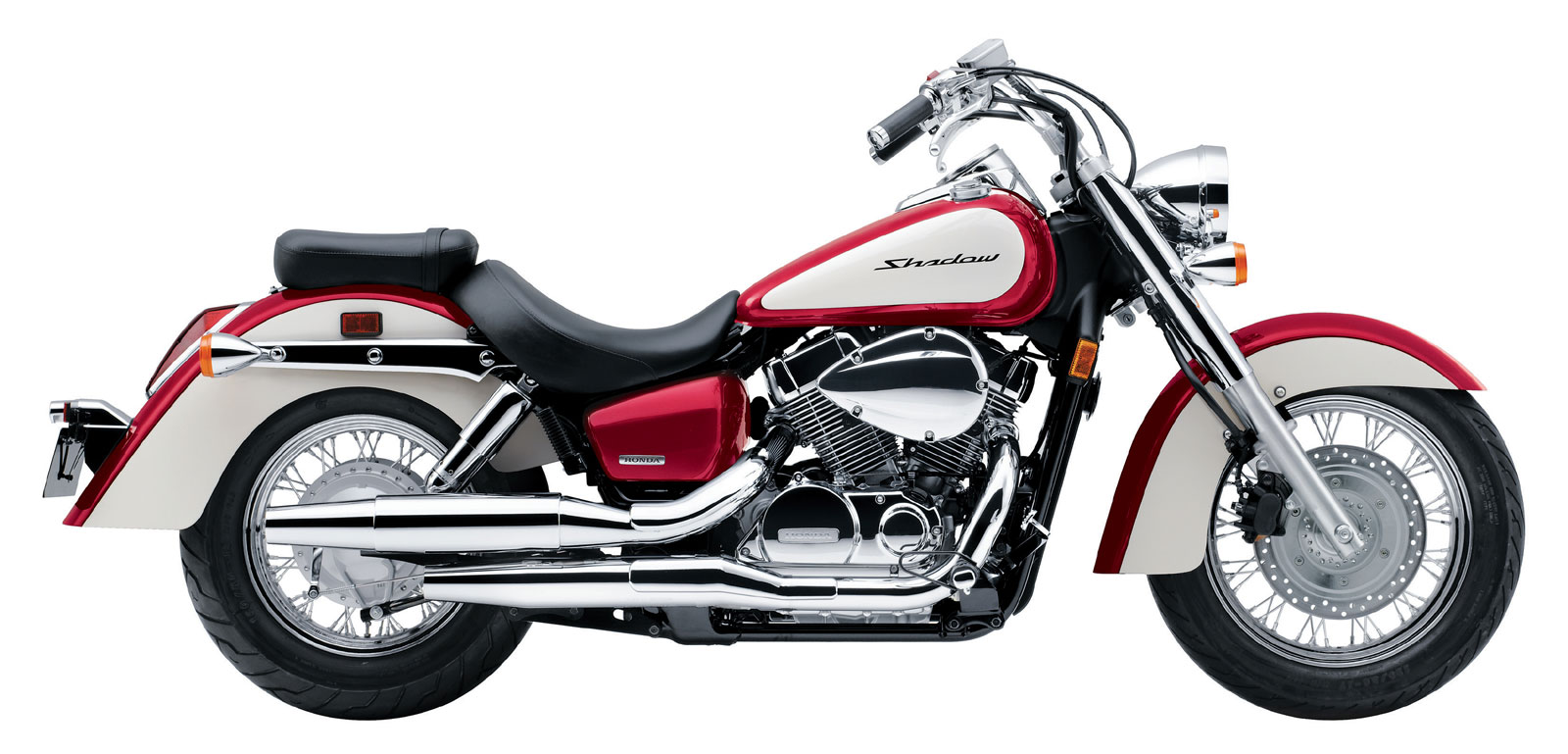

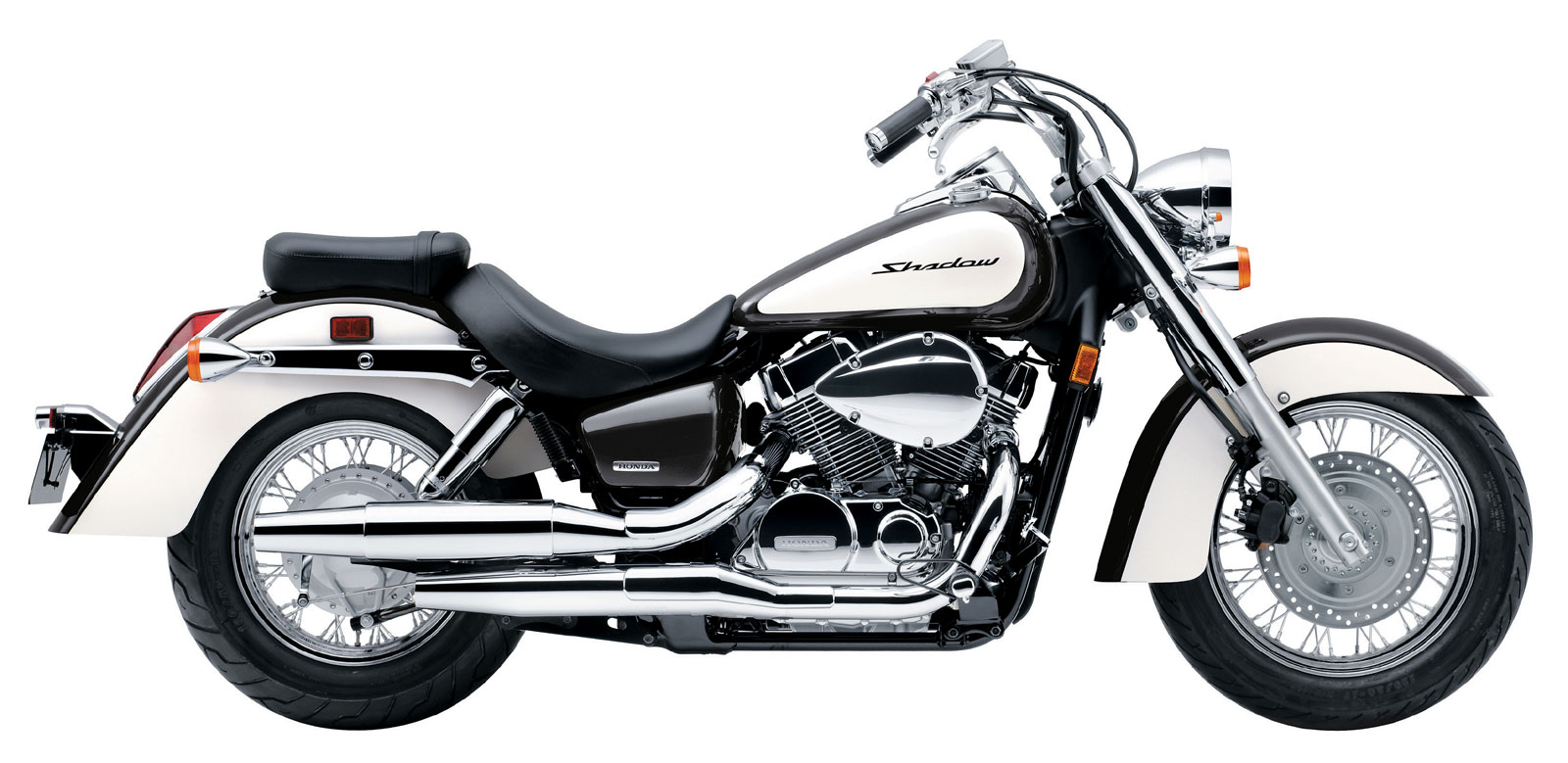

2008 VT 750C Shadow Aero
2008 VT 750C Shadow Aero
Click image to enlarge
2008 VT 750C Shadow Aero
2008 VT 750C Shadow Aero
Click image to enlarge
2008 VT 750C Shadow Aero
2008 VT 750C Shadow Aero
Click image to enlarge
2008 VT 750C Shadow Aero
2008 VT 750C Shadow Aero
Click image to enlarge
2008 VT 750C Shadow Aero
2008 VT 750C Shadow Aero
Click image to enlarge

2009 VT 750 Shadow Aero

  • ENGINE
    • Engine Size: 745cc
    • Engine Detail: liquid-cooled 52-degree V-twin
    • Bore Stroke: 79.0mm x 76.0mm
    • Compression Ratio: 9.6:1
    • Fuel System: Single 34.0mm CV type
    • Ignition: CD with electronic advance, two spark plugs per cylinder
  • DRIVETRAIN
    • Transmission: Wide-ratio five-speed
    • Final Drive: Shaft
  • CHASSIS / SUSPENSION / BRAKES
    • Suspension Front: 41.0mm fork; 4.6-inch travel
    • Suspension Rear: Dual shocks with five-position spring-preload adjustability; 3.5-inch travel
    • Brakes Front: Single 296 mm disc with twin-piston caliper
    • Brakes Rear: 180 mm Drum
    • Tire Front: 120/90-17
    • Tire Rear: 160/80-15
  • DIMENSION
    • Wheelbase: 64.5 in.
    • Seat Height: 25.9 in.
    • Curb Weight: 553 lbs.
    • Fuel Capacity: 3.7 gal.
  • OTHER
    • Colors: Metallic Titanium/White, Pearl Blue/Metallic Silver, Black/Snakeskin Pattern, Candy Dark Red, Black
    • Price: $6999
    • Warranty: 1 Year

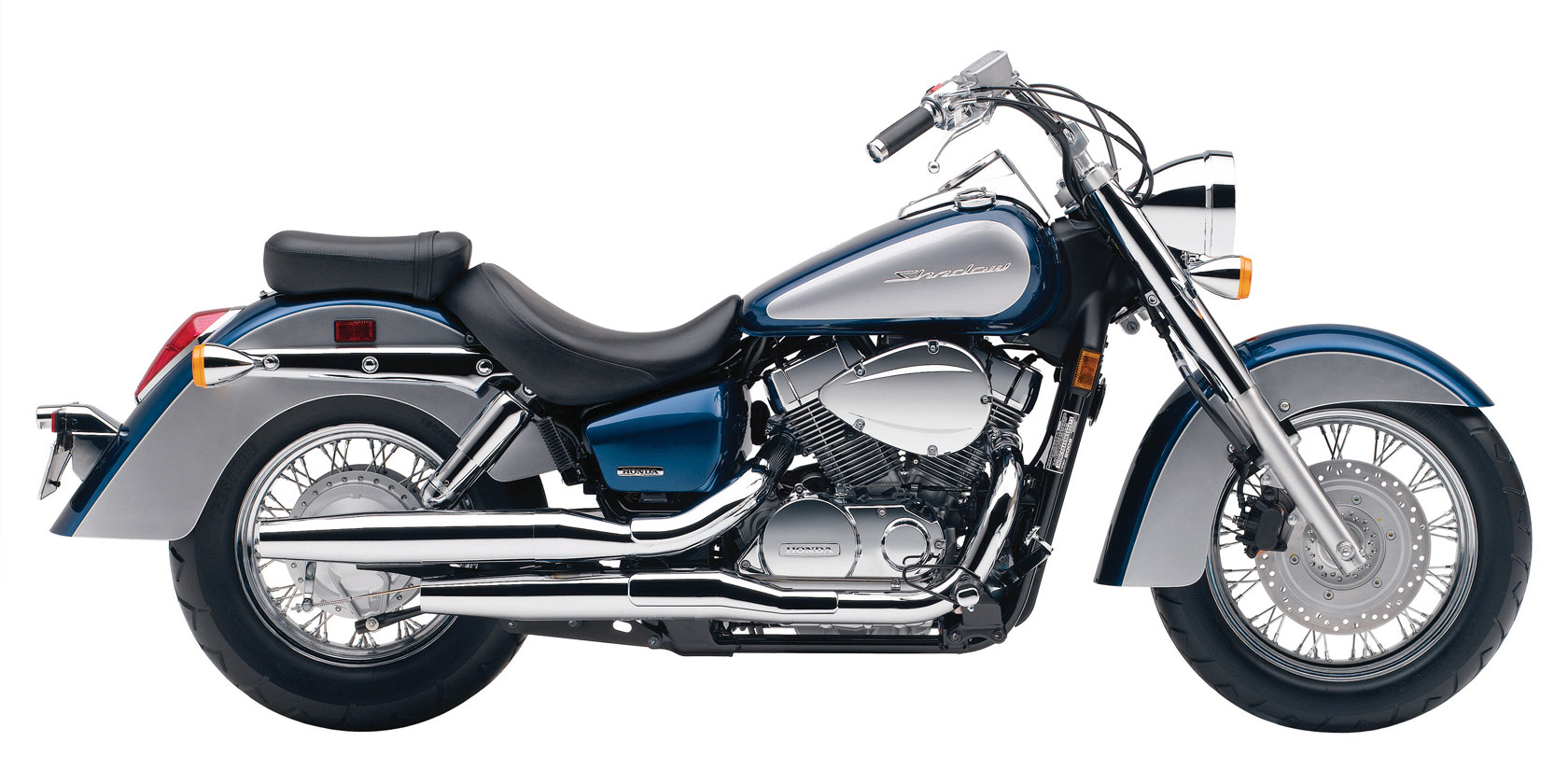

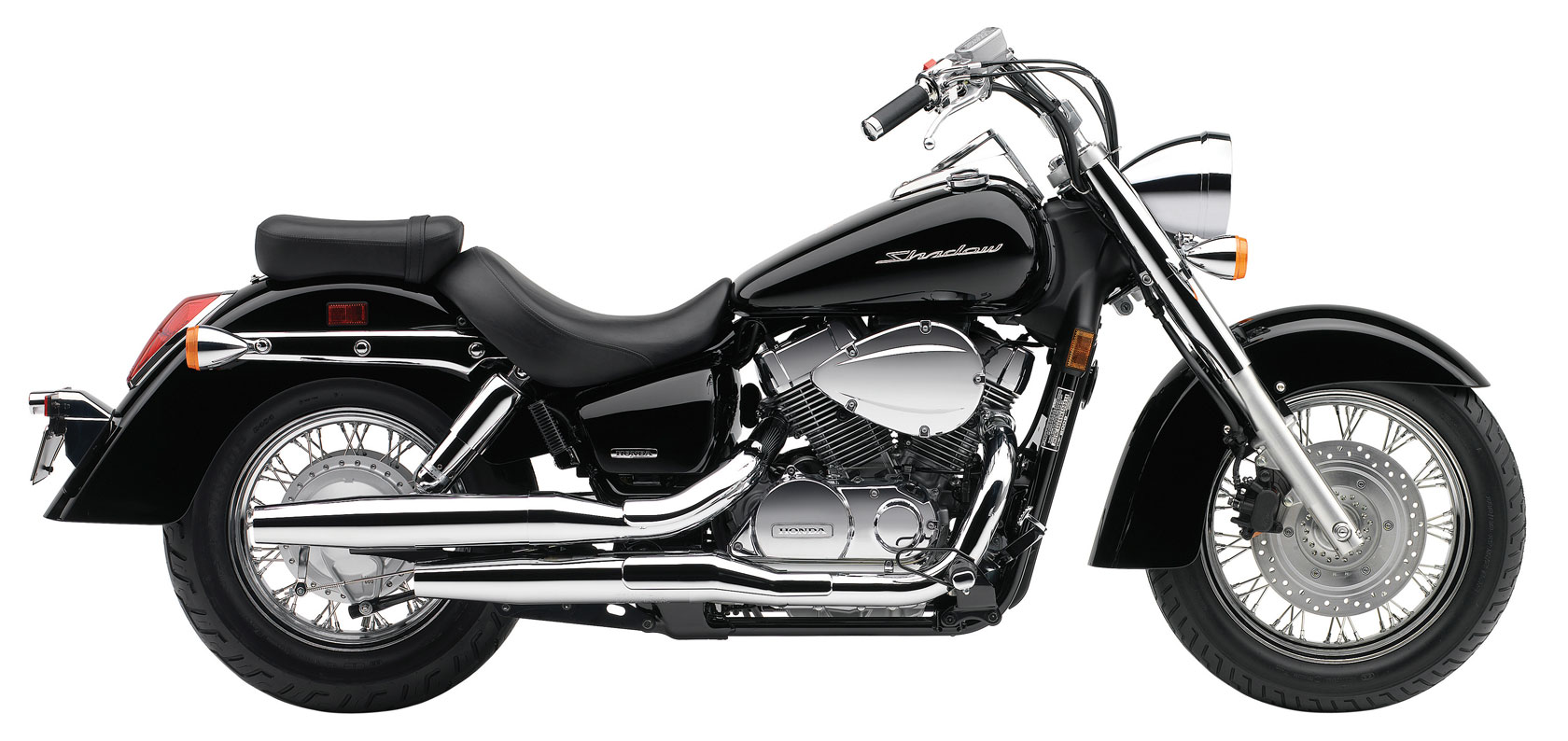

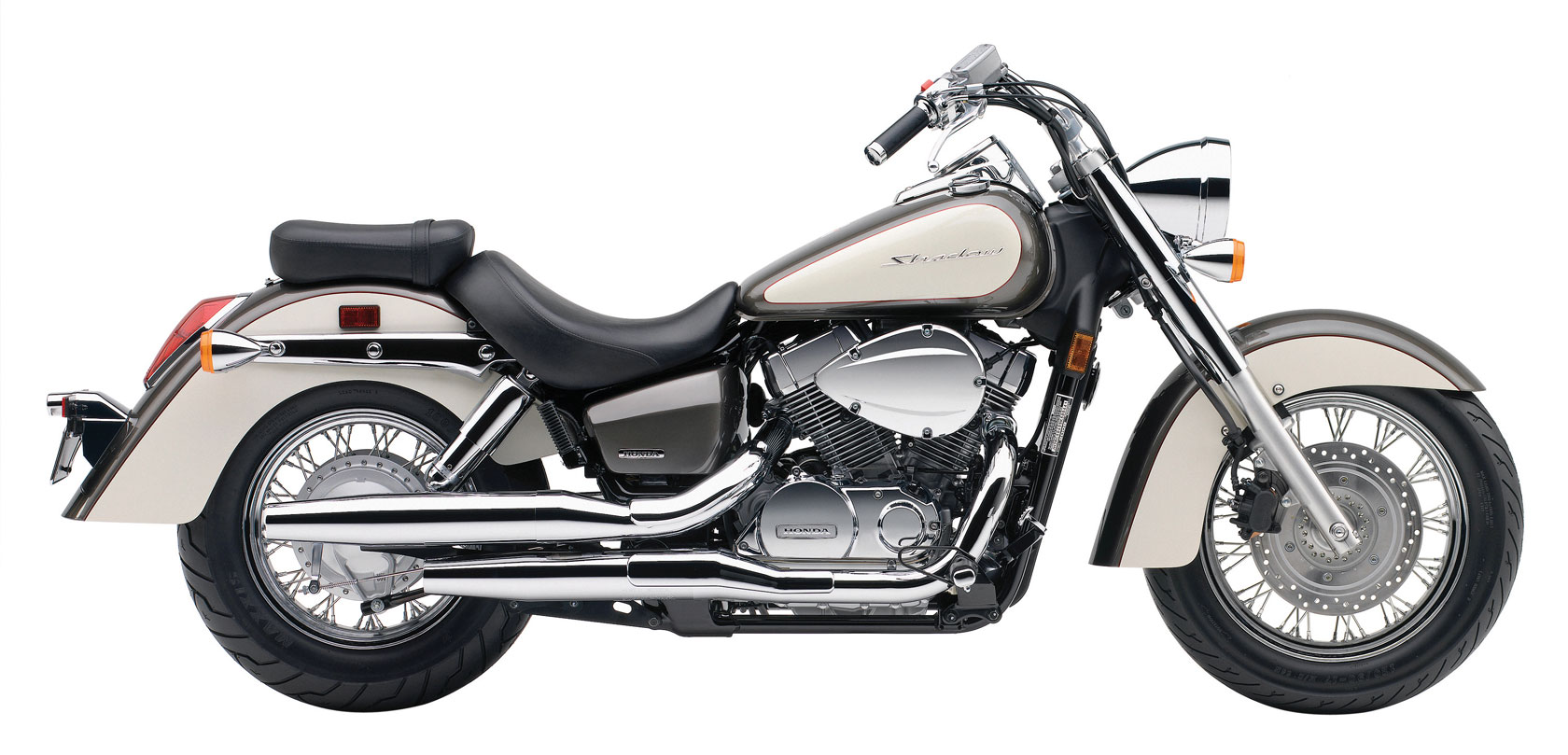

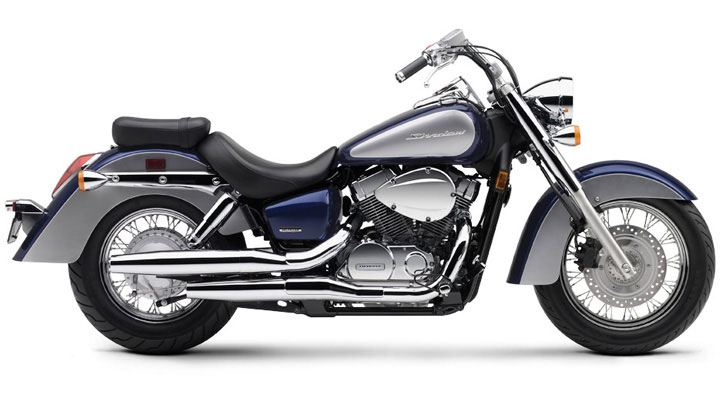

2009 VT 750C Shadow Aero
2009 VT 750C Shadow Aero
2009 VT 750C Shadow Aero
2009 VT 750C Shadow Aero
2009 VT 750C Shadow Aero
2009 VT 750C Shadow Aero
2009 VT 750C Shadow Aero
2009 VT 750C Shadow Aero
2009 VT 750C Shadow Aero
2009 VT 750C Shadow Aero

2012 VT750A Shadow Aero

  • ENGINE
    • Engine Type: Liquid-cooled 52-degree V-twin
    • Displacement: 745 cc
    • Bore and Stroke: 79 mm x 76 mm
    • Compression Ratio: 9.6:1
    • Valve Train: Chain-driven SOHC, 3 valves per cylinder
    • Fuel Delivery: PGM-FI electronic fuel injection
  • DRIVETRAIN
    • Transmission: Wide-ratio five-speed
    • Final Drive: Shaft
  • CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: 41 mm fork; 117 mm (4.6 in.) travel
    • Rear Suspension: Dual shocks with adjustable spring preload, 89 mm (3.5 in.) travel
    • Tires: 120/90 - 17 front; 160/80 - 15 rear
    • Brakes: Front single 296 mm disc with triple-piston caliper; rear single 276 mm disc with single-piston caliper. Combined Braking System with ABS (Anti-lock Braking System)
  • DIMENSION
    • Ground Clearance: n/a
    • Seat Height: 660 mm (26 in.)
    • Wheelbase: 1,640 mm (64.6 in.)
    • Curb Weight: 262 kg (578 lb) including required fluids and full tank of gas - ready to ride
    • Fuel Capacity: 14 litres
  • OTHER
    • Color: Candy Red
    • Warranty: 1 year, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus
    • MSRP: $9,499
2012 VT750CA Aero
2012 VT750CA Aero
